TE5 塑膠殼慢斷微型保險絲
Physical map：
Description
TE5®, time-Lag type, 250V rated, designed in accordance to IEC 60127-3.
Features
? Lead-free ? Reduced PCB space requirements ? Direct solderable or plug-in versions ? Internationally approved
? Low internal resistance ? Shock safe casing ? Vibration resistant ? Halogen free
Applications
? Battery Charges ? Consumer Electronics ? Power supplies ? Industrial Controllers
|
% of Ampere Rating
|
Opening Time
|
|
150%
|
1 Hour, Min.
|
|
210%
|
120 s, Max.
|
|
275%
|
400 ms Min. ; 10 Sec. Max.
|
|
400%
|
150 ms Min. ; 3 Sec. Max.
|
|
1000%
|
20 ms Min. ; 150 ms Max.
|
Electrical Characteristic Specifications by Item
Rated
Current
|
Amp
Code
|
Voltage
Rating
|
Breaking
Capacity
|
Voltage Drop
1.0×IN max.
(mV)
|
Power Dissipation
1.5×IN max. (mW)
|
MeltingIntegral
10×INmin. (A2s)
|
Agency Approvals
|
|
VDE
|
S
|
UR
|
PSE
|
CQC
|
KC
|
|
50mA
|
005
|
250V
|
50A/250 VAC
|
1350
|
85
|
0.003050
|
x
|
x
|
x
|
x
|
x
|
|
|
63mA
|
0063
|
250V
|
1200
|
85
|
0.00820
|
x
|
x
|
x
|
x
|
x
|
|
|
100mA
|
0100
|
250V
|
1350
|
100
|
0.06500
|
x
|
x
|
x
|
x
|
x
|
|
|
125mA
|
0125
|
250V
|
1100
|
110
|
0.1000
|
x
|
x
|
x
|
x
|
x
|
|
|
160mA
|
0160
|
250V
|
1000
|
160
|
0.2005
|
x
|
x
|
x
|
x
|
x
|
x
|
|
200mA
|
0200
|
250V
|
950
|
185
|
0.443
|
x
|
x
|
x
|
x
|
x
|
x
|
|
250mA
|
0250
|
250V
|
900
|
200
|
0.735
|
x
|
x
|
x
|
x
|
x
|
x
|
|
315mA
|
0315
|
250V
|
600
|
215
|
1.00
|
x
|
x
|
x
|
x
|
x
|
x
|
|
500mA
|
0500
|
250V
|
400
|
235
|
1.55
|
x
|
x
|
x
|
x
|
x
|
x
|
|
630mA
|
0630
|
250V
|
200
|
255
|
2.63
|
x
|
x
|
x
|
x
|
x
|
x
|
|
800mA
|
0800
|
250V
|
|
110
|
280
|
3.80
|
x
|
x
|
x
|
x
|
x
|
|
|
1.00A
|
1100
|
250V
|
115
|
400
|
5.80
|
x
|
x
|
x
|
x
|
x
|
x
|
|
1.25A
|
1125
|
250V
|
100
|
500
|
9.75
|
x
|
x
|
x
|
x
|
x
|
x
|
|
1.60A
|
1160
|
250V
|
95
|
600
|
13.50
|
x
|
x
|
x
|
x
|
x
|
x
|
|
2.00A
|
1200
|
250V
|
90
|
700
|
21.00
|
x
|
x
|
x
|
x
|
x
|
x
|
|
2.50A
|
1250
|
250V
|
85
|
750
|
32.00
|
x
|
x
|
x
|
x
|
x
|
x
|
|
3.15A
|
1315
|
250V
|
32A/250VAC
|
80
|
1100
|
55.00
|
x
|
x
|
x
|
x
|
x
|
x
|
|
4.00A
|
1400
|
250V
|
40A/250V/AC
|
75
|
1200
|
100.00
|
x
|
x
|
x
|
x
|
x
|
x
|
|
5.00A
|
1500
|
250V
|
50A/250V/AC
|
70
|
1000
|
90.00
|
x
|
x
|
x
|
x
|
x
|
x
|
|
6.30A
|
1630
|
250V
|
63A/250V/AC
|
65
|
1200
|
126.00
|
x
|
x
|
x
|
x
|
x
|
|
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
Temperature Derating Curve

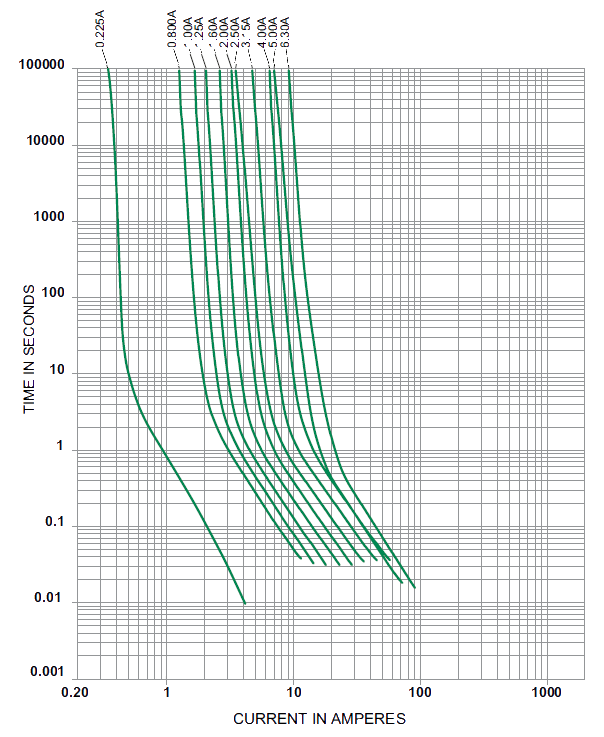

Average Time Current Curves
Product Characteristics
|
Materials
|
Base/Cap: Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 Round Pins: Copper, Tin-plated
|
|
Lead Pull Strength
|
10 N (IEC 60068-2-21)
|
|
Solderability
|
260oC, ≤ 3 sec. (Wave) 350oC, ≤ 3 sec. (Soldering iron)
|
|
Soldering Heat Resistance
|
260oC, 10 sec. (IEC 60068-2-20) 350oC, ≤ 3 sec. (Soldering iron)
|
|
Operating Temperature
|
–40oC to +85oC (consider de-rating)
|
|
Climatic Category
|
–40oC to +85oC/21 days (EN 60068-1, -2-1, -2-2, -2-78)
|
|
Stock Condition
|
+10 oC to +60 oC Relative humidity ≤ 75% yearly average, without dew, maximum value for 30 days - 95%
|
|
Vibration Resistance
|
24 cycles at 15 min. each(EN 60068-2-6)10–60 Hz at 0.75 mm amplitude 60–2000 Hz at 10 g acceleration
|

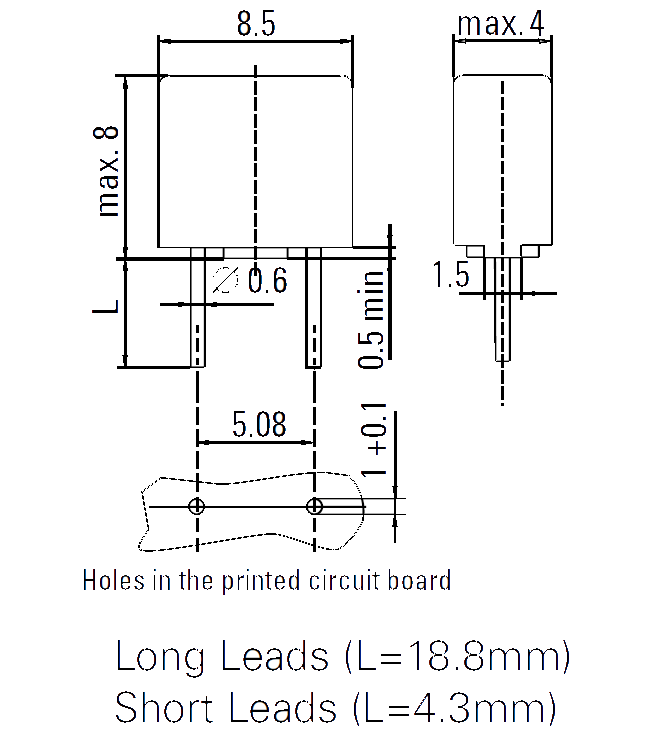

Dimensions
Packaging
|
packaging Option
|
packaging Specification
|
Quantity
|
|
12mm Tape and Reel
|
N/A
|
1400
|
