TB02-B8D系列產品
TB02 Series product
國內最小體積的熱保護器 The smallest-size thermal protecto r in China
產品優勢 Product advantage
◎體積小,便于安裝
◎低內阻,<30 mΩ
◎速動型雙金屬片,反應靈敏速度快
◎壽命高達10000次以上
◎防真空浸漆工藝泄漏
◎電流溫度雙重保護
◎引線可根據要求定制
◎可替代SENSATA 4MM/6MM,PEPI,ISUZU IP405/505等進口產品
◎ Small size and installation easily
◎ Low internal resistance,<30mΩ
◎ Snap type, sensitive to current and temperature and action quickly
◎ Endurance life more than 10000 cycles
◎Prevention again leak of vacuum impregnation process
◎ Double protection of over-current & over-temperature
◎ Lead can be customized
◎ Replacer of 4MM/6MM from SENSTAT,IP405/505 from ISUZU
and other imported products from PEPI
觸點最大容量10000 cycles MAXlMUM CONTACT RATINGS
電壓(V)
|
電流(I)
|
12V-DC
|
4A
|
24V-DC
|
3A
|
125V-DC
|
3A
|
250V-DC
|
2A
|
應用范圍 APPLICATION
◎充電電池組
◎罩柜電機
◎交流馬達、景觀水泵電機
◎熒光燈鎮流器
◎變壓器、電磁鐵開關
◎電加熱器具
◎便攜式電動工具
◎ rechargeable battery pack
◎ motor hood cabinet
◎ AC motor, landscape water
pump motor
◎ fluorescent lamp ballasts
◎ transformers, solenoid switch
◎ electric heating appliances
◎ portable power tools

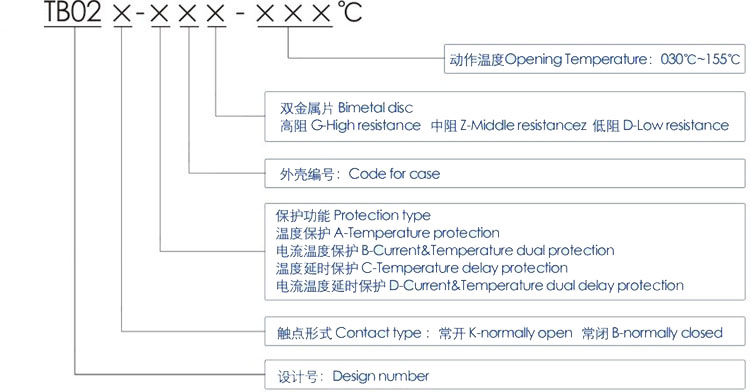

CODE SYSTEM 產品編號代碼圖 CODE SYSTEM Product serial number of the code
額定動作溫度和復位溫度圖 OPENING TEMPERATURE &RESET TEMPERATURE
代碼
|
動作溫度
|
復位溫度
|
030
|
30±3℃
|
≧20℃
|
035
|
35±3.5℃
|
≧25℃
|
040
|
40±4℃
|
≧30℃
|
045
|
45±4.5℃
|
≧33℃
|
050
|
50±5℃
|
≧35℃
|
055
|
55±5℃
|
42±6℃
|
060
|
60±5℃
|
45±8℃
|
065
|
65±5℃
|
48±10℃
|
070
|
70±5℃
|
50±12℃
|
075
|
75±5℃
|
53±14℃
|
080
|
80±5℃
|
55±15℃
|
085
|
85±5℃
|
60±15℃
|
090
|
90±5℃
|
65±15℃
|
095
|
95±5℃
|
70±15℃
|
100
|
100±5℃
|
70±15℃
|
105
|
105±5℃
|
75±15℃
|
110
|
110±5℃
|
75±15℃
|
115
|
115±5℃
|
80±15℃
|
120
|
120±5℃
|
80±15℃
|
125
|
125±5℃
|
85±15℃
|
130
|
130±5℃
|
85±15℃
|
135
|
135±5℃
|
90±15℃
|
140
|
140±5℃
|
100±15℃
|
145
|
145±5℃
|
100±15℃
|
150
|
150±5℃
|
105±15℃
|
155
|
155±5℃
|
115±15℃
|

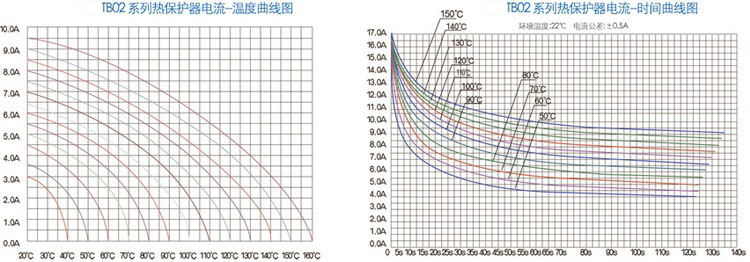

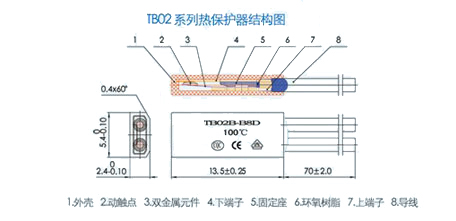

產品尺寸圖 DIMENSION
產品型號MODEL
|
長度L(mm)
|
寬度W(mm)
|
高度H(mm)
|
導線 LEAD WIRE
|
TB02-B8D
|
13.5
|
5.4
|
2.4
|
3266-24AWG,3135-24AWG or Customer specified
Standard Cable Length: 70mm
|
