1032(3X10)方頭貼片保險絲
Description：
The SMD1032 High Current Fuse is a small square surface mount fuse that is designed to support higher current requirements of various applications.
Features：
? Surface mount high current fuse ? Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly ? RoHS compliant and Halogen Free ? Available in ratings of 1 to 40 Amperes
Applications：
? High end servers / Blade computing? Base station power supply? Voltage regulator module? Cooling fan system for PC Server? Advance Telecommunication Computing Architecture (ATCA) applications for cloud computing? Battery Management System (Industrial Tools)
Material Details
|
NO.
|
Part Name
|
Material
|
|
1
|
End caps
|
Copper Plating/Silver
|
|
2
|
Body
|
Ceramic Tube
|
|
3
|
Fuse
|
Alloy wire
|
|
4
|
Explosion proof sand
|
quartz sand
|
Electrical Characteristics for Series
|
% of Ampere rating
|
OpeningTime
|
|
100%
|
4 hours, Minimum
|
|
200%
|
60 sec., Max.
|
Electrical Specifications by Item
|
Ampere
Rating
(A)
|
Amp Code
|
MaxVoltage
Rating(V)
|
Interrupting
Rating
|
Nominal Cold
Resistance
(Ohms)
|
Nominal
Melting
I2t (A2sec)
|
Agency Approvals
|
|
UL
|
TUV
|
|
1.00
|
001.
|
125V/250V/300VAC
72V/125VDC
|
100A @125VAC
300A @ 65VAC
300A @ 100VDC
1000A @ 32VDC
500A @ 72VDC
|
0.2516
|
1.76
|
●
|
●
|
|
1.50
|
01.5
|
0.1186
|
4.70
|
●
|
●
|
|
2.00
|
002.
|
0.0708
|
6.76
|
●
|
●
|
|
2.50
|
02.5
|
0.0400
|
13.18
|
●
|
●
|
|
3.00
|
003.
|
0.0352
|
19.55
|
●
|
●
|
|
3.50
|
03.5
|
0.0261
|
32.70
|
●
|
●
|
|
4.00
|
004.
|
0.0227
|
40.80
|
●
|
●
|
|
5.00
|
005.
|
0.0171
|
59.59
|
●
|
●
|
|
6.00
|
006
|
0.0168
|
65.43
|
●
|
●
|
|
7.00
|
007
|
0.0153
|
68.57
|
●
|
●
|
|
8.00
|
008
|
0.0136
|
72.57
|
●
|
●
|
|
10.00
|
0001
|
0.0117
|
86.32
|
●
|
●
|
|
12.00
|
012
|
0.00254
|
116.45
|
●
|
●
|
|
15.00
|
015
|
0.00230
|
142
|
●
|
●
|
|
20.00
|
020
|
0.00191
|
435
|
●
|
●
|
|
30.00
|
030
|
0.00130
|
679
|
●
|
●
|
|
40.00
|
0.40
|
0.00089
|
900
|
|
|
Notes: - l2t calculated at 8ms. Resistance is measured at 10% of rated current, 2
3oC

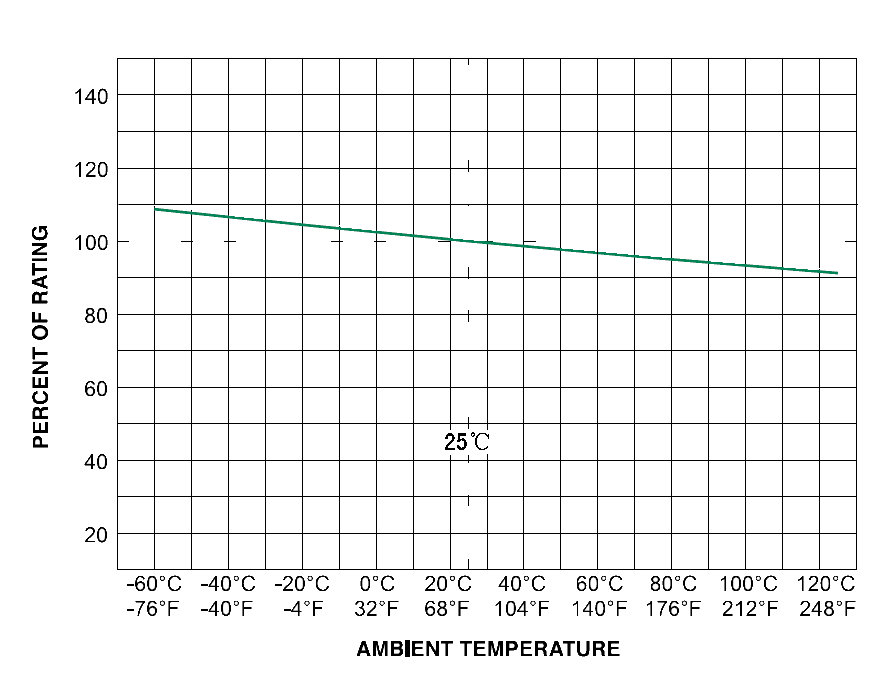

Temperature Derating Curve
Notes:
1. Derating depicted in this curve is in addition to the standard derating of 20% for continuous operation.
Example:For continuous operation at 75 degrees celsius, the fuse should be derated as follows:I = (0.80)(0.85)IRAT= (0.68)IRAT

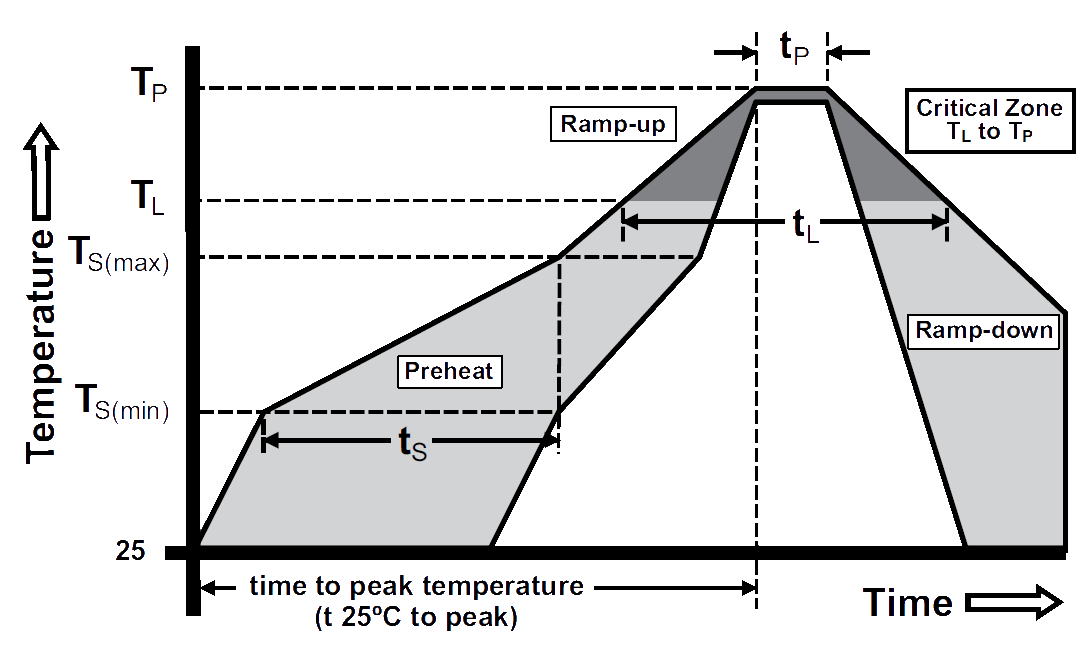

Soldering Parameters
|
Reflow Condition
|
Pb – Free assembly
|
|
Pre Heat
|
- Temperature Min (Ts(min)) 150°C
|
|
- Temperature Max (Ts(max)) 200°C
|
|
- Time (Min to Max) (ts) 60 – 120 secs
|
|
Average ramp up rate (Liquidus Temp (TL) to peak
|
3°C/second max
|
|
TS(max) to TL - Ramp-up Rate
|
3°C/second max
|
|
Reflow
|
- Temperature (TL) (Liquidus) 217°C
|
|
- Temperature (tL) 60 – 90 seconds
|
|
Peak Temperature (TP)
|
260+0/–5 °C
|
|
Time within 5°C of actual peak Temperature (tp)
|
20 – 40 seconds
|
|
Ramp-down Rate
|
5°C/second max.
|
|
Time 25°C to peak Temperature (TP)
|
8 minutes max.
|
|
Do not exceed
|
260°C
|
|
Wave Soldering Parameters
|
260°C Peak Temperature,3 seconds max.
|
Product Characteristics
|
Materials
|
Body: Ceramic Terminations: Gold-plated Caps
|
|
Product Marking
|
Brand, Amperage Rating
|
|
Operating Temperature
|
-55°C to 300V°C
|
|
Moisture Sensitivity Level
|
Level 1, J-STD-020C
|
|
Solderability
|
MIL-STD-202, Method 208
|
|
Insulation Resistance (after Opening)
|
MIL-STD-202, Method 302,
Test ConditionA (10,000 ohms minimum)
|
|
Thermal Shock
|
MIL-STD-202, Method 107, Test Condition B, 5 cycles, -65°C to 300V°C, 15 minutes @ each extreme
|
|
Mechanical Shock
|
MIL-STD-202, Method 213, Test I:Deenergized. 100G’s pk amplitude, sawtooth wave 6ms duration, 3 cycles xYZ+xyz = 18 shocks
|
|
Vibration
|
MIL-STD-202, Method 201: 0.03" amplitude, 10-55 Hz in 1 min. 2hrs each xYZ=6hrs
|
|
Moisture Resistance
|
MIL-STD-202, Method 106, 10 cycles
|
|
Salt Spray
|
MIL-STD-202, Method 101, Test Condition B (48hrs)
|
|
Resistance to Soldering Heat
|
MIL-STD-202, Method 210, Test condition B (10 sec at 260°C)
|

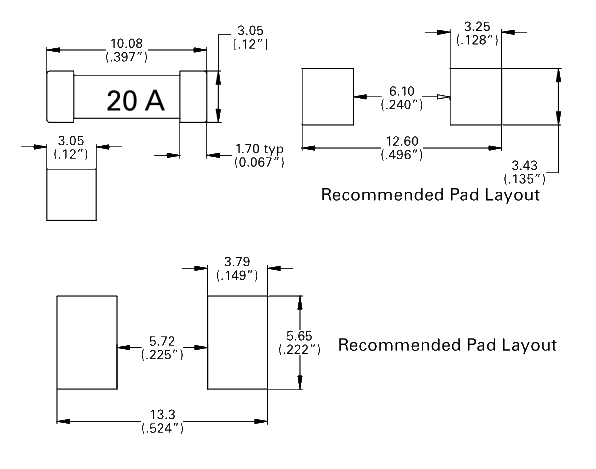

Dimensions
Packaging
|
packaging Option
|
packaging Specification
|
Quantity
|
Quantity &packaging code
|
|
24 mm Tape and Reel
|
EIA RS-481-2
|
2000
|
ER
|
