1032(3X10)圓管貼片保險絲

Description：

The SMD1032 fuse is RoHS compliant,Halogen Free and 100% lead-free. This product is fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly.The SMD1032 design has enhanced inrush withstand characteristics over . The unique time delay feature of this fuse design helps solve the problem of nuisance “opening” by accommodating inrush currents that normally cause a fast-acting fuse to open。

Features：

? Lead-free and Halogen Free ? Time-lag? Small size ? Wide range of current ratings available ? Wide operating temperature range? Low temperature de-rating

Applications：

Secondary protection for space constrained applications:

? Notebook PC ? LCD/PDP TV ? LCD monitor ? LCD/PDP panel ? LCD backlight inverter ? Portable DVD player ? Power supply? Networking ? PC server ? Cooling fan system ? Storage system ? Telecom system ? Wireless basestation ? Game console ? Office Automation equipment ? Battery charging circuit protection ? Industrial equipment? Medical equipment ? Automotive

Dimensions

Material Details

NO.	Part Name	Material
1	End caps	Copper nickel/tin plating
2	Body	Ceramic Tube
3	Fuse	Alloy wire
4	Explosion proof sand	Quartz sand

Electrical Characteristics for Series

% of Ampere rating	OpeningTime
100%	4 hours, Minimum
200%	60 sec., Max.

Electrical Specifications by Item

Catalog Number	Ampere Rating	MaxVoltage Rating(V)	Interrupting Rating	Nominal Resistance Cold mOhms	Nominal Melting i²tA²Sec.	Agency Approvals
Catalog Number	Ampere Rating	MaxVoltage Rating(V)	Interrupting Rating	Nominal Resistance Cold mOhms	Nominal Melting i²tA²Sec.	CE	UR	CQC
.100	.100	250V/300VAC 72V/125VAC/DC	100A @125VAC 300A @ 65VAC 300A @ 100VDC 1000A @ 32VDC 500A @ 72VDC	3.300	0.00160	×	×
.125	.125			2.300	0.00790	×	×
.160	.160			1.700	0.0128	×	×
.200	.200			0.500	0.0200	×	×	×
.250	.250			0.630	0.312	×	×	×
.315	.315			0.460	0.422	×	×	×
.400	.400			0.360	0.755	×	×	×
.500	.500			0.310	1.32	×	×	×
.630	.630			0.178	2.55	×	×	×
.800	.800			0.125	3.25	×	×	×
.001	1.00			0.092	6.95	×	×	×
1.25	1.25			0.065	12.1	×	×	×
01.6	1.60			0.048	18.2	×	×	×
002.	2.00			0.035	20.8	×	×	×
02.5	2.50			0.028	32.5	×	×	×
3.15	3.15			0.020	40.8	×	×	×
004.	4.00			0.016	95.0	×	×	×
005.	5.00			0.014	140	×	×	×
06.3	6.30			0.009	240	×	×	×
008	8			0.0072	320	×	×	×
010	10			0.0065	430	×	×	×

Notes: - l2t calculated at 8ms. Resistance is measured at 10% of rated current, 23oC

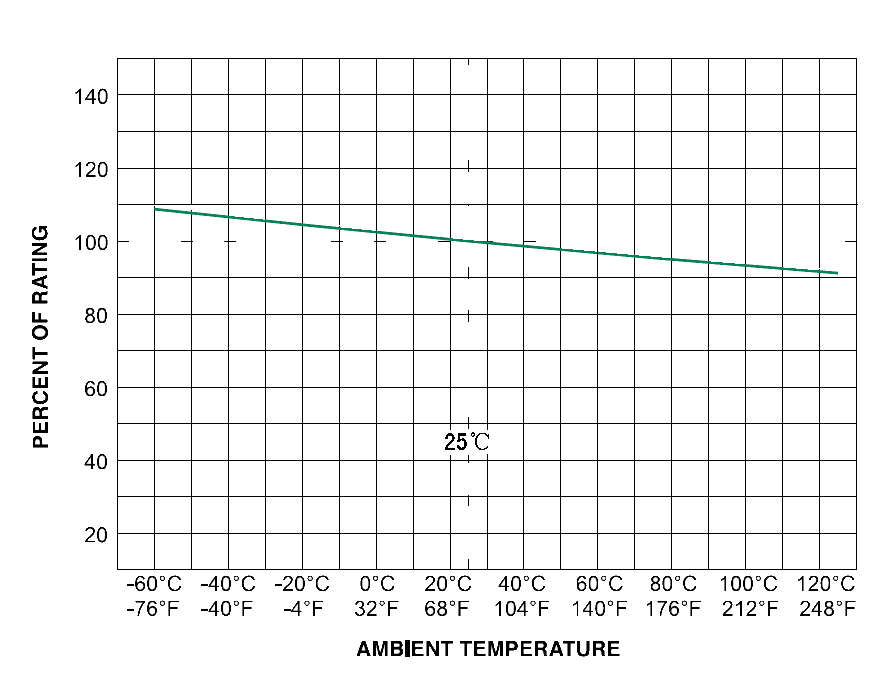

Temperature Derating Curve

Notes:

1. Derating depicted in this curve is in addition to the standard derating of 20% for continuous operation.

Example:For continuous operation at 75 degrees celsius, the fuse should be derated as follows:I = (0.80)(0.85)I_RAT= (0.68)I_RAT

Reflow Condition	Pb – Free assembly
Pre Heat	- Temperature Min (Ts(min)) 150°C
	- Temperature Max (Ts(max)) 200°C
	- Time (Min to Max) (ts) 60 – 120 secs
Average ramp up rate (Liquidus Temp (TL) to peak	3°C/second max
TS(max) to TL - Ramp-up Rate	3°C/second max
Reflow	- Temperature (TL) (Liquidus) 217°C
Reflow	- Temperature (tL) 60 – 90 seconds
Peak Temperature (TP)	260+0/–5 °C
Time within 5°C of actual peak Temperature (tp)	20 – 40 seconds
Ramp-down Rate	5°C/second max.
Time 25°C to peak Temperature (TP)	8 minutes max.
Do not exceed	260°C
Wave Soldering Parameters	260°C Peak Temperature,3 seconds max.

Soldering Parameters

Product Characteristics

Materials	Body: Ceramic Terminations: Gold-plated Caps
Product Marking	Brand, Amperage Rating
Operating Temperature	-55°C to 300V°C
Moisture Sensitivity Level	Level 1, J-STD-020C
Solderability	MIL-STD-202, Method 208
Insulation Resistance (after Opening)	MIL-STD-202, Method 302, Test ConditionA (10,000 ohms minimum)
Thermal Shock	MIL-STD-202, Method 107, Test Condition B, 5 cycles, -65°C to 300V°C, 15 minutes @ each extreme
Mechanical Shock	MIL-STD-202, Method 213, Test I:Deenergized. 100G’s pk amplitude, sawtooth wave 6ms duration, 3 cycles xYZ+xyz = 18 shocks
Vibration	MIL-STD-202, Method 201: 0.03" amplitude, 10-55 Hz in 1 min. 2hrs each xYZ=6hrs
Moisture Resistance	MIL-STD-202, Method 106, 10 cycles
Salt Spray	MIL-STD-202, Method 101, Test Condition B (48hrs)
Resistance to Soldering Heat	MIL-STD-202, Method 210, Test condition B (10 sec at 260°C)

Packaging

packaging Option	packaging Specification	Quantity	Quantity &packaging code
24 mm Tape and Reel	EIA RS-481-2	2000	ER
